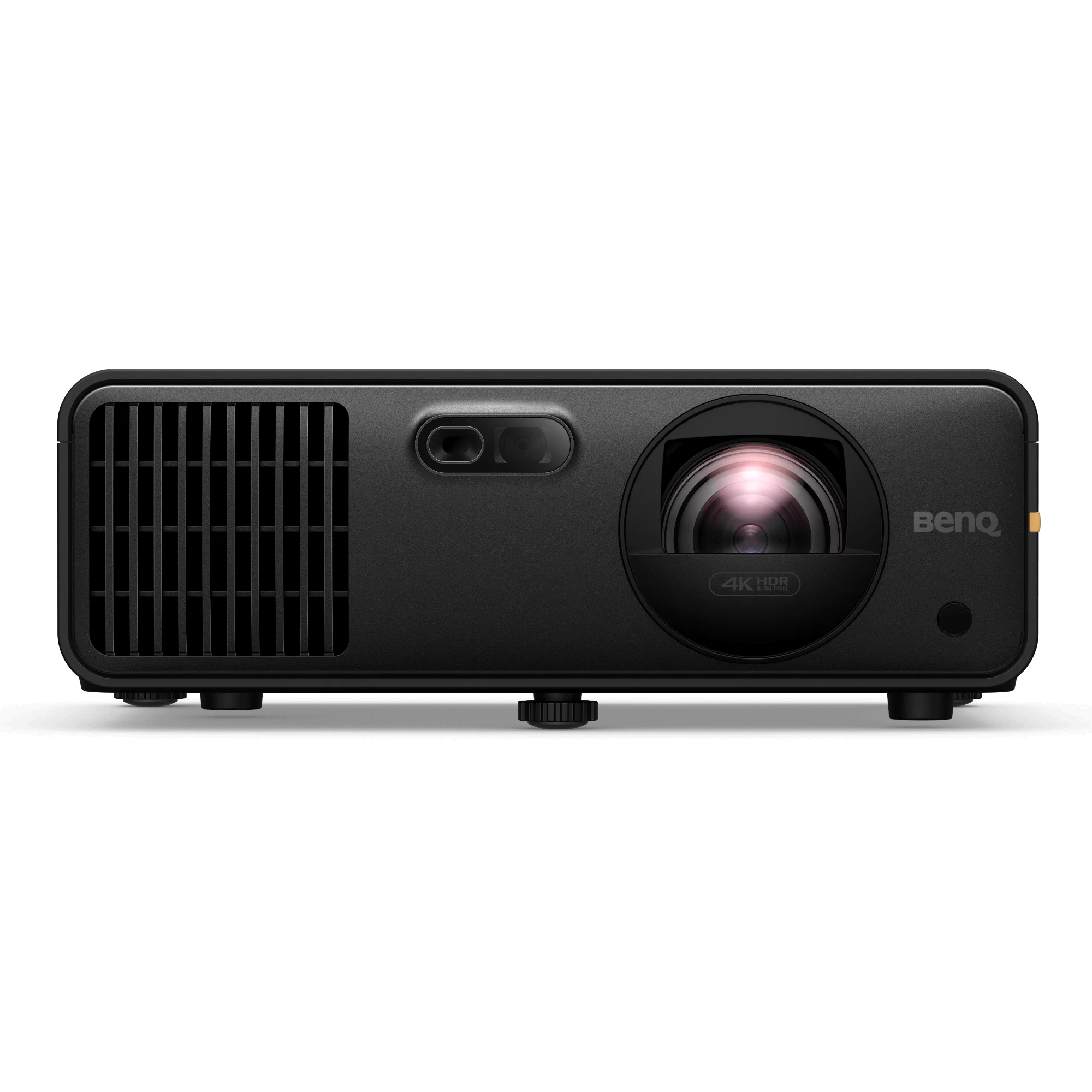

BenQ AK700ST 4000 Lumen 4K - Golf Sim Short Throw Projector

The BenQ AK700ST is a 4K UHD short-throw laser projector designed for an ultra-realistic golf simulation experience. With 4000 lumens of brightness, HDR-PRO™ technology, and 97% Rec.709 color accuracy, it delivers crisp, vibrant visuals in any lighting condition. Its low input lag ensure smooth, real-time ball tracking, while the short-throw design allows for flexible installation in compact spaces. Perfect for golfers seeking precision, clarity, and immersive gameplay

ALL SPECIFICATIONS

DISPLAY
Brightness (ANSI lumens)    4000
Resolution    4K UHD (3840×2160)
Native Aspect Ratio    16:9
Contrast Ratio (FOFO)    3,000,000:1
Display Color    30-bit (1.07 billion colors)
Light Source    Laser
Light Source Life    20000 hrs

OPTICAL
Throw Ratio    0.69-0.83
Zoom Ratio    1.2x
Lens    F/2.53(Wide), f = 10.2mm(Wide)
Projection Offset (Full-Height)    102.50%
Keystone Adjustment    3D, Vertical ± 30 degrees; Horizontal ± 30 degrees; Rotation ± 30 degrees

Rec. 709 Coverage    95%
Picture Modes    3D, Bright, Cinema, Game, Golf, HDR10, HLG, sRGB, User 1, User 2

COMPATIBILITY
Input Lag    33.4 ms (1080P 60Hz)
Resolution Support    VGA (640 x 480) to 4K UHD (3840 x 2160)
Horizontal Frequency    15K~135KHz

I/O INTERFACE
HDMI in    (x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)
USB Type A    (x2), USB Type A-1 (2.0/Power Supply1.5A/Service), USB Type A-3 (2.0/Wireless Dongle)
USB Type C    (x1), Display Port with PD out 5V/1A
RS232 in (DB-9pin)    (x1)

AUDIO
Speaker    (x1), 10W
HDMI Audio Return    eARC, 7.1 channel

Environment
Operating Temperature    0~40℃
Power Supply    AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)    192W
Stand-by Power Consumption    <0.5W
Acoustic Noise (Typ./Eco.)(dB)    32db/29db

Accessories
Wireless USB dongle    5201BS
Remote Control w/ Battery    RCA011
Power Cord (by region)    x1 (1.8M)
Quick Start Guide    (x1) 21L
Warranty Card (by region)    Yes
Universal Ceiling Mount    CM00G3

Dimension & Weight
Dimensions (WxHxD) (mm)    303.5 x 112.4 x 234.5
Net Weight (kg)    3.4 Kg +/- 100g
Dimensions (WxHXD) (inch)    11.94 x 4.43 x 9.23
Net Weight (lb)    7.48 lb

Projection System
Projection System    DLP
